Shanghai Thriving Print Technologies LTD-1842WR

1842WR

1.8 meters high quality water-based printer

1842WR

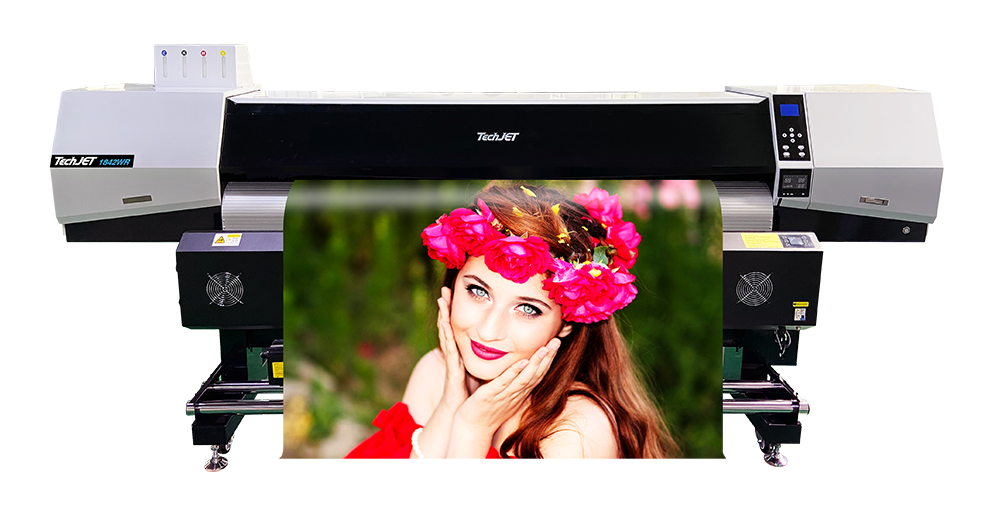

The 1842WR is a roll-to-roll water-based printer equipped with two staggered printheads. It is designed to achieve stable operation while delivering high image quality and high productivity.

Outstanding image performance

The 1842WR is equipped with Epson i3200 printheads, supporting variable droplet printing technology, which enhances print quality with more intricate details and natural grayscale output, resulting in richer and more refined color transitions.

Excellent productivity

Two staggered printheads significantly boost printing speed while ensuring image quality, with an actual production-mode speed of up to 24m²/h.

A wide field applications

Lightbox

Banner

Poster

Subway advertising

Decoration painting

X-stand banner

Wall paper

Advertising board

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

Color Configuration: CMYK×2

Maximum printing width: 1800mm(5'11") , It meets the requirements of most customers for large-format advertising printing.

Equipped with two Epson i3200 printheads

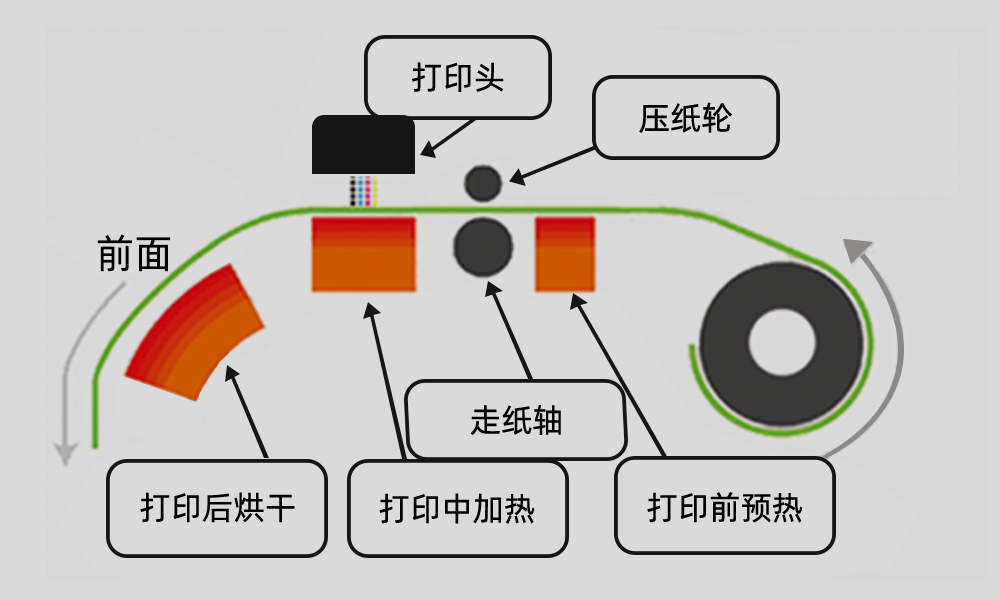

Three-stage heating system (pre / mid / post heating) with precise temperature control and rapid warm-up.

Pre-heating removes moisture and enhances ink absorption;

Mid-heating provides continuous heat to ensure optimal ink-to-media bonding;

Post-heating performs secondary drying and curing, ensuring stable output and smooth rewinding and lamination.

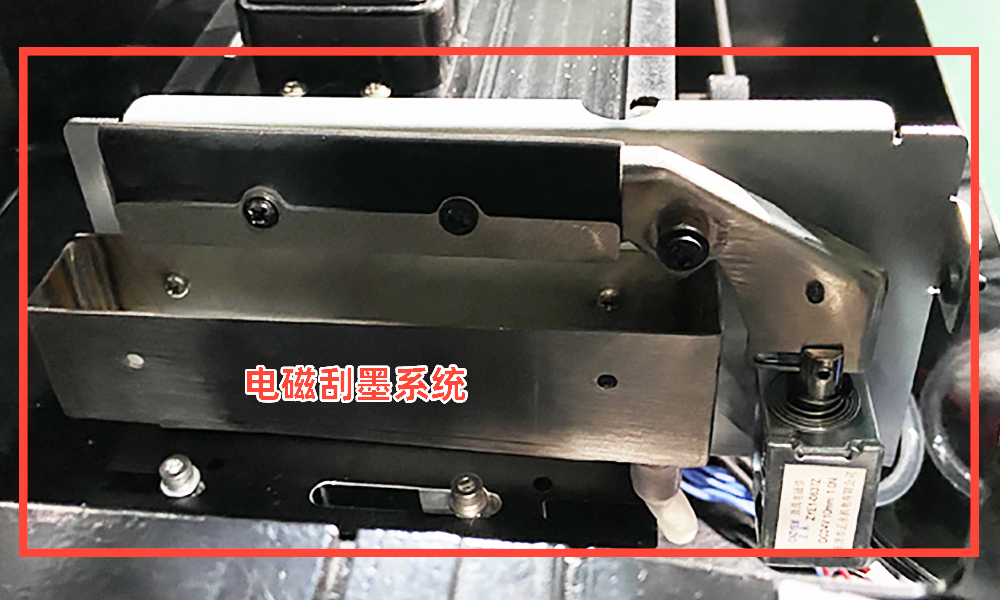

The electromagnetic ink scraper allows for automatic lifting and lowering of the scraper, reducing ink accumulation on the nozzle surface and making the cleaning process more efficient and safe. In standby mode, the scraper is in a tilted position, which prevents ink buildup and avoids ink leakage or nozzle clogging during the cleaning process.

The variable droplet printing technology can freely control the size of the ink droplets, reducing the graininess of the image and presenting more details, smooth color transitions, and high saturation.

Specifications

Model name		TJ-1842WR
Printhead	Technology	Micro piezo inkjet printing technology
	Number of printhead	2
	Height	Adjustable from 1mm up to 4mm
	Print resolution	720×1200dpi, 720×1800dpi, 720×2400dpi
	Printhead protection method	Automatic cleaning
Printing speed	4PASS 720×1200dpi（Speed）	40.5 ㎡/h
	6PASS 720×1800dpi（Standard）	24.4㎡/h
	8PASS 720×2400dpi（Quality）	17.63㎡/h
Ink supply	Type	Water-based ink
	Color range	C M Y K
	Ink tank capacity	1500ml
	Name of model	TW21-1000，Package of 1000ml each
Media type	Category	Indoor printing materials
	Max loading media width	1850mmxEndless
	Max printing width	1830mmxEndless
	Media type	Roll media
	Max media weight	40KG
	Max media thinckness	2mm
	Take up	40KG
RIP software		Maintop
Supported image formats		JPG, TIF, BMP, PDF
Computer configuration request	Operating system	Win7, Win10, Win11
	Hardware requirements	Hard disk: 500G or more, Graphics: ATI Solo, RAM：8G , Optical drive: DVD optical drive, inter core i5
	Interface	Network Interface
Standard		Front, middle and rear three built-in heating + external dryer, media take up, Maintop RIP
Printable environment		Humidity: 40%－60%（non condensing），Temperature∶15℃～35℃
Power demand		220V 50/60HZ 10A
Machine Size（W×D×H）		3080×800×1530mm
Package Size（W×D×H）		3190×1010×1090mm
Package size		Net weight：330KG，Gross weight：485KG

The specification are subject to change without notice

Download

您还没有选择分类数据，请先选择数据

The high-precision THK2.0 silent guide rail ensures the stability and accuracy of the print carriage, thus ensuring high-quality output.

The interweave printing technology effectively improves the banding that occurs during the printing process, ensuring the print quality reaches an ideal state.
