Shanghai Thriving Print Technologies LTD-1844SR

1844SR

1.8 meters high quality eco-solvent printer

1844SR

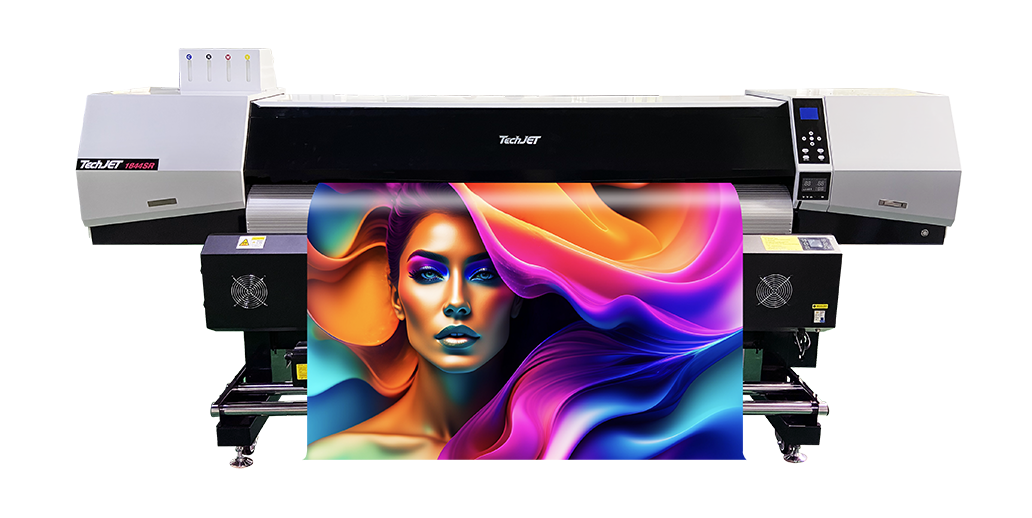

The 1844SR is a roll-to-roll eco-solvent printer equipped with four staggered printheads. It is designed to achieve stable operation while delivering high image quality and high productivity.

Outstanding image performance

The 1844SR is equipped with Epson i3200 printheads, supporting variable droplet printing technology, which enhances print quality with more intricate details and natural grayscale output, resulting in richer and more refined color transitions.

Excellent productivity

Four staggered printheads significantly boost printing speed while ensuring image quality, with an actual production-mode speed of up to 51m²/h.

A wide field applications

Large billboard

Lightbox

Car wrapping

Reflective sign

Decoration painting

Wall paper

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

Color Configuration: CMYK×4

Maximum printing width: 1800mm(5'11") , It meets the requirements of most customers for large-format advertising printing.

Equipped with four Epson i3200 printheads

Three-stage heating system (pre / mid / post heating) with precise temperature control and rapid warm-up.

Pre-heating removes moisture and enhances ink absorption;

Mid-heating provides continuous heat to ensure optimal ink-to-media bonding;

Post-heating performs secondary drying and curing, ensuring stable output and smooth rewinding and lamination.

The electromagnetic ink scraper allows for automatic lifting and lowering of the scraper, reducing ink accumulation on the nozzle surface and making the cleaning process more efficient and safe. In standby mode, the scraper is in a tilted position, which prevents ink buildup and avoids ink leakage or nozzle clogging during the cleaning process.

The variable droplet printing technology can freely control the size of the ink droplets, reducing the graininess of the image and presenting more details, smooth color transitions, and high saturation.

Specifications

Model		TJ-1844SR
Printhead	Printhead type	Micro piezo print head
	Number of printhead	4
	Print resolution	720×1200dpi、720×1800dpi、720×2400dpi
	Print head protection	Automatic cleaning, automatic inkjet moisture function
Printing speed	4PASS 720×1200dpi（Speed）	76.8 ㎡/h
	6PASS 720×1800dpi（Standard）	51㎡/h
	8PASS 720×2400dpi（Quality）	38.4㎡/h
Ink	Type	Eco-Solvent ink
	color range	C M Y K
	Model	TS21-1000，Package of 1000ml each
Maximum print size		1800mm
Media		PVC(Car stickers), inkjet cloth
Media type		Roll media
RIP software		Maintop
Supported image formats		JPG、TIF、BMP、PDF
Computer Configuration	Operating System	Win7、Win10
	Hardware Requirements	Hard disk: 500G or more, Graphics: ATI Solo, RAM：8G , Optical drive: DVD optical drive, inter core i5
	Interface	Network Interface
Standard		Front, middle and rear three built-in heating + external dryer, media take up, Maintop RIP
Printable environment		Humidity: 40%－60%（non condensing），Temperature∶15℃～35℃
Power demand		220V 50/60HZ 10A
Machine Size（W×D×H）		3018×853×1538mm
Package Size（W×D×H）		3190×1010×1020mm
Package Size		Net weight：350KG, Gross weight：510KG

The specification are subject to change without notice

Download

您还没有选择分类数据，请先选择数据

The high-precision THK2.0 silent guide rail ensures the stability and accuracy of the print carriage, thus ensuring high-quality output.

The interweave printing technology effectively improves the banding that occurs during the printing process, ensuring the print quality reaches an ideal state.
