2500VersaUV

2.5 meters large format high quality high speed versatility UV printer

2500VersaUV

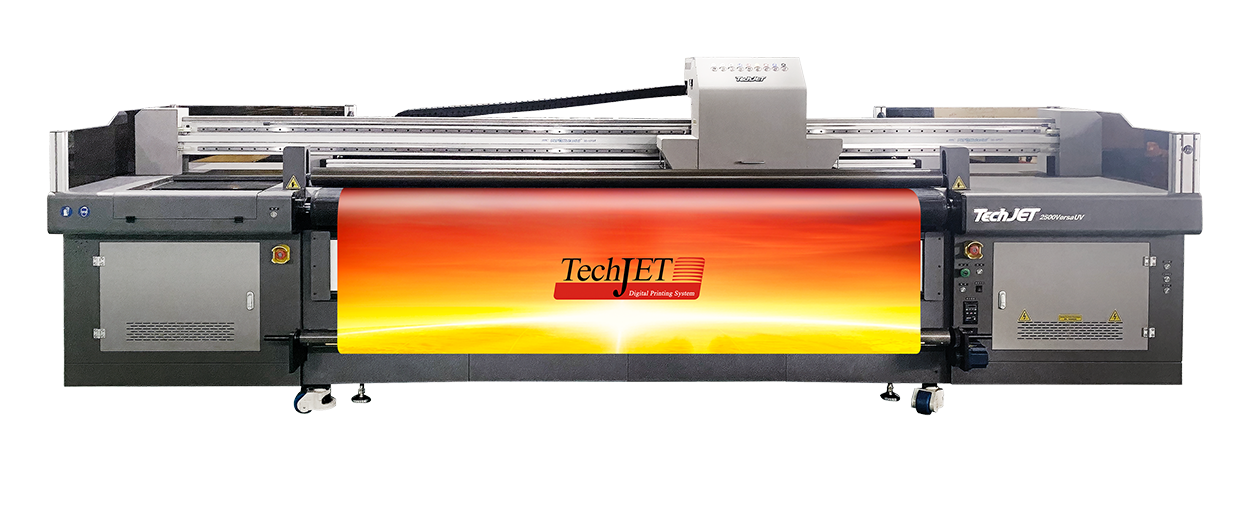

The TechJet 2500VersaUV is a multi-functional UV printer with a maximum printing material width of 2500mm and theoretically unlimited printing length. The machine can print on roll materials, and with the addition of front and rear platforms, can also print on rigid substrates, which is why we call it a multi-functional UV printer. The main highlights of the machine are its stability and price-performance.

Outstanding image performance

The 2500VersaUV is equipped with Ricoh Gen6 industrial printheads, delivering a minimum dot size of just 5pl for precise and consistent jetting performance. The intelligent control software supports multi-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

Excellent productivity

The 2500VersaUV can be configured with up to three rows totaling 9 printheads, dramatically expanding the printing width and significantly increasing productivity while maintaining high image quality ideal for high-volume, high-efficiency industrial printing applications.

High stability

The 2500VersaUV designed for stability and reliability, the 2500VersaUV features a dual negative-pressure ink system for consistent ink supply and a multi-stage media feed system for smooth, even material handling. Whether running long continuous jobs or high-speed large-format printing, it delivers exceptional stability and uniform, high-quality output perfect for industrial-scale, high-volume production.

Wide range of applications

The 2500VersaUV printer handles a diverse range of materials with ease. it delivers vivid, high-definition images every time. with industrial-grade performance and precise printing, the 2500VersaUV printer is ideal for outdoor advertising, commercial displays, packaging, home decoration, and custom projects, enabling efficient, flexible, and versatile production.

A wide field applications

Lightbox

Large billboard

Outdoor large format advertising

Airport Advertising

Decoration painting

Stretch Ceiling

Leather

Glass Decal

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

Basic Color Configuration: CMYK+White

Optional Color Configurations:CMYKLcLm

CMYKLcLm+White

More optional depend Custom Demand

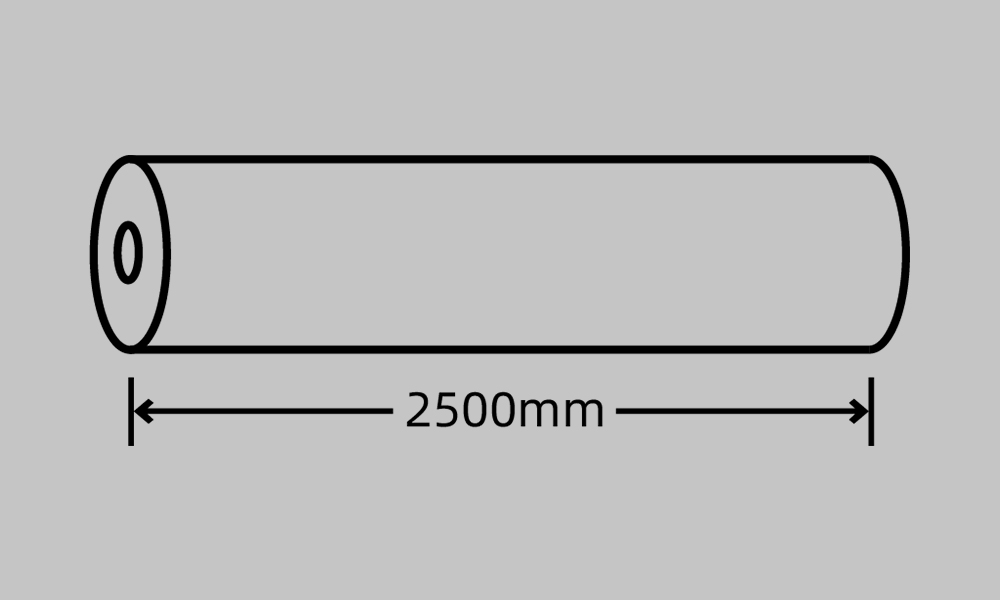

Maximum printing width: 2500mm(8'2.43") It meets the requirements of most customers for large-format advertising printing.

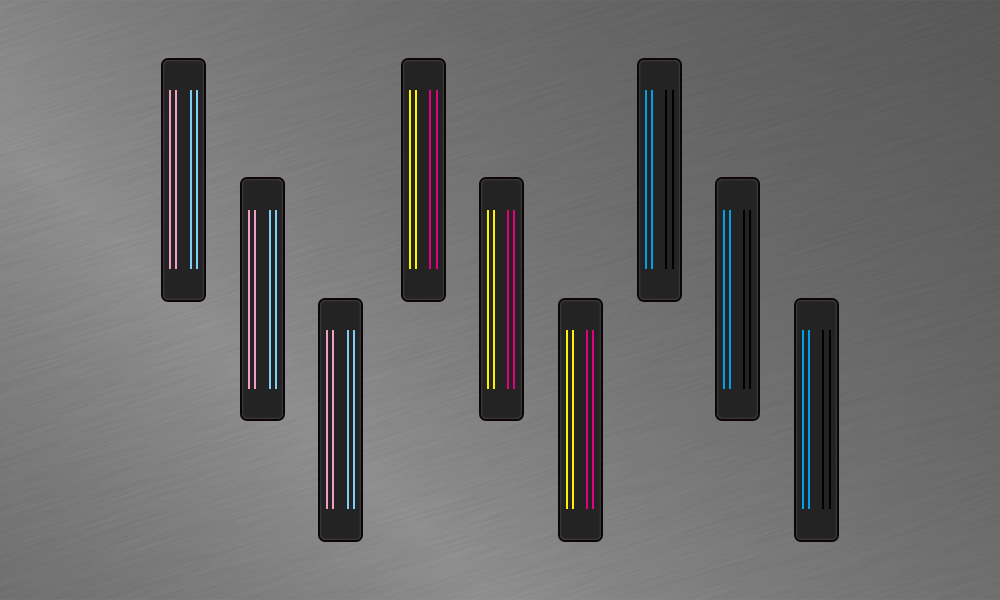

Equipped with three rows of Ricoh Gen6 printheads, it significantly increases productivity while ensuring high precision.

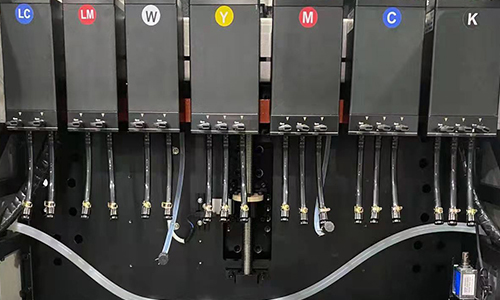

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

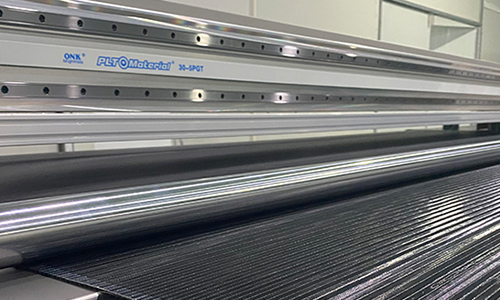

The metal encoder scale offers high precision, excellent temperature and wear resistance, and strong contamination resistance, effectively enhancing carriage positioning stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

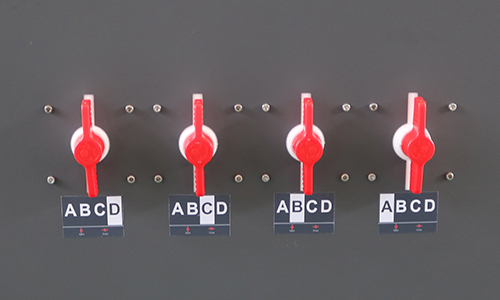

The four-zone independently controlled negative pressure platform allows the suction areas to be adjusted according to the size of the printing media, ensuring the media remains flat and stable at all times.

The metal encoder scale offers high precision, excellent temperature and wear resistance, and strong contamination resistance, effectively enhancing carriage positioning stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

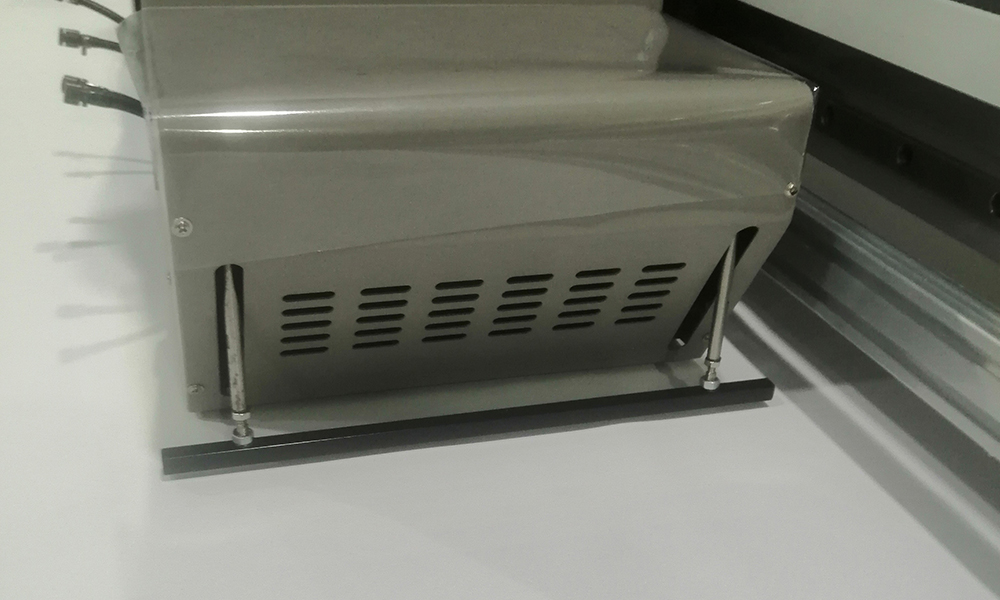

The bidirectional high-sensitivity anti-collision system effectively protects the printheads!

The anti-static device prevents ink flying phenomenon and ensures precise print accuracy.

Specifications

Model		2500VersaUV
Carriage moving method		Belt
Printhead		Ricoh G6
Basic and max number of printheads		3--9
Maximum printheads number		9
Max row of printheads		3
Used ink		F2-1000 UV curing ink
Color selection		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	Two rows printhead printing speed	Color white printing speed		Color white color printing speed (Three-rows printheads)
Draft Mode	4Pass-726×600	56.25㎡/h	56.25㎡/h		28.12㎡/h
Standard mode	4Pass-726×600	28.71㎡/h	28.71㎡/h		14.35㎡/h
Quality Mode	6Pass-726×900	19.91㎡/h	19.91㎡/h		9.95㎡/h
High quality mode	8Pass-726×1200	14.79㎡/h	14.79㎡/h		7.39㎡/h
Print Media	Media	Roll media		Flat media
	Max Print size	2500mm(8.2F)		2500×1300mm(8.2Fx4.3F)
	Thickness	1-1.5mm		1-30mm
RIP Software		ONYX、Flexi、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Printer weight		1700kg
Dimension (W x D x H)		4680mm×1260mm×1450mm
Front and rear printing platform（optional accessories）		2750mm×565mm
Power demand		AC220V±10%，≥32A，50/60HZ
Maximum power		6000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
