Shanghai Thriving Print Technologies LTD-3250KPro

3250K-Pro

High quality large format flatbed UV printer

3250K-Pro

The 3250K-Pro is an industrial-grade UV printer with a large 3200×5000mm printing area. Equipped with Konica Minolta KM1024A printheads, an X-axis high-speed magnetic linear drive control and a Y-axis dual magnetic scale closed-loop motion control system and as well as an integrated frame structure, it delivers high-speed, high-precision printing, enabling more efficient and stable production of advertising boards, display panels, and decorative materials.

Outstanding image performance

The 3250K-Pro is equipped with Konica Minolta KM1024A industrial printheads, delivering a minimum dot size of just 6pl for precise and consistent jetting performance. The intelligent control software supports multi-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

Excellent productivity

The 3250K-Pro is equipped with Konica Minolta KM1024A industrial printheads, delivering a minimum dot size of just 6pl for precise and consistent jetting performance. The intelligent control software supports multi-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

High stability

The 3250K-Pro designed for stability and reliability, the 3250K-Pro features a dual negative-pressure ink system for consistent ink supply, integral steel frame structure and Y-Axis dual magnetic grid close-loop motion control system, whether running long continuous jobs or high-speed large-format printing, it delivers exceptional stability and uniform, high-quality output perfect for industrial-scale, high-volume production.

Wide range of applications

The 3250K-Pro flatbed UV printer is suitable for a variety of flat materials and applications, achieving a seamless integration of creativity and production. Its powerful industrial-grade performance and high-precision printing capabilities make it ideal for outdoor advertising production, commercial displays, home décor customization, personalized gift packaging, architectural decorative panels, and more.

A wide field applications

Glass

Ceramic

Appliances

Artwork Reproduction

Floor Mats

Braille signage

Wood Decor

3C Digital Accessories

Furniture

Cartoon Standee

Packaging

Leather

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

Basic Color Configuration: CMYK+White

Optional Color Configurations:CMYK+White+Varnish CMYKLcLm+White

CMYKLcLm+White+Varnish

More optional depend Custom Demand

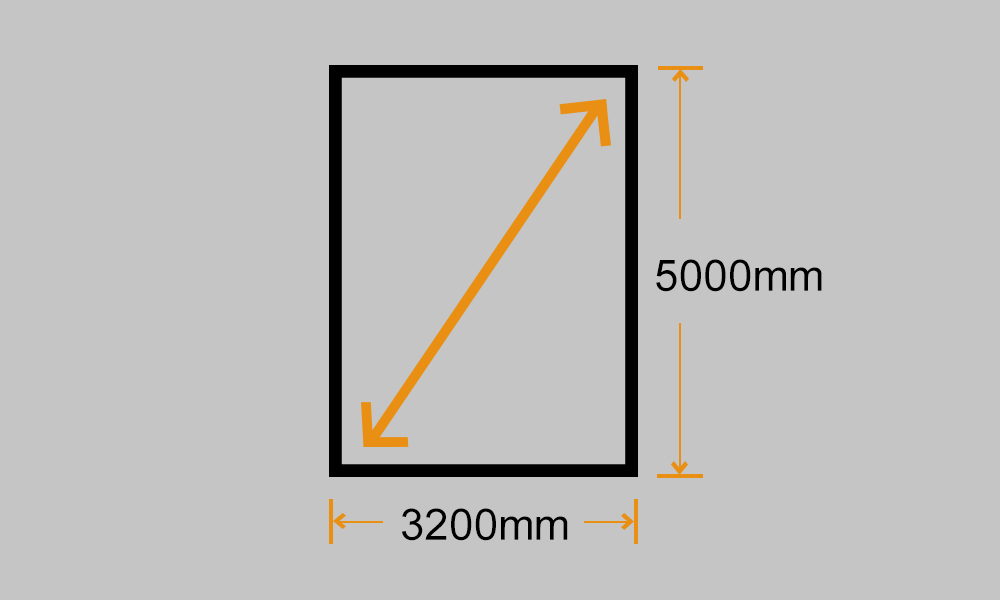

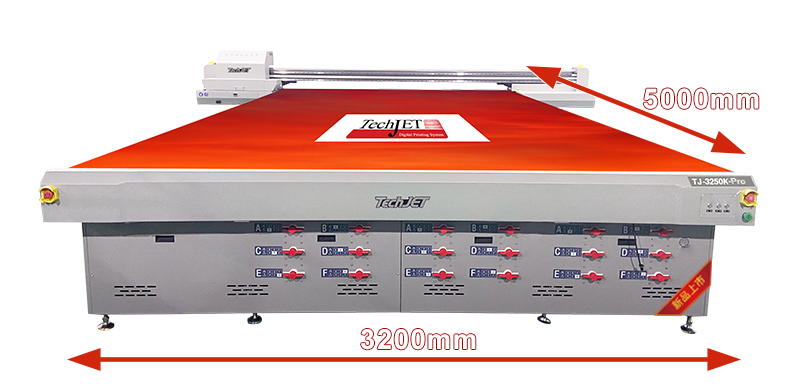

With a maximum print area of 3200mm ×5000mm（ 10'6" × 16'4.85"）, it covers the key application sizes across advertising, decoration, and signage sectors. the larger format meets the production needs of more users.

Max Media Thickness: 100mm(3.94")

我是段落。点击这儿添加你的文字并编辑它，非常容易。-双击进行编辑

Equipped with three rows of Konica Minolta 1024A printheads, it significantly increases productivity while ensuring high precision.

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

The metal grating paired with magnetic linear drive control empowers the carriage with both high speed and precise stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

The eighteen-zone independently controlled negative pressure platform allows the suction areas to be adjusted according to the size of the printing media, ensuring the media remains flat and stable at all times.

The white main tank’s independent agitation maintains pigment uniformity, while the dual secondary white ink cartridges provide continuous circulation to reduce sedimentation and prevent nozzle clogging.

Optional visual positioning system，say goodbye to wireframes, Jigs and repeated alignment! Achieve precise printing effortlessly, with full freedom to customize irregular shapes and complex patterns, boosting both efficiency and creativity.

The bidirectional high-sensitivity anti-collision system effectively protects the printheads!

Optional anti-static device prevents ink flying phenomenon and ensures precise print accuracy.

Specifications

Model		3250K-Pro
Carriage moving method		Linear Motor
Printhead		Konica Minolta 1024a
Basic and Max number of printheads		5--22
Maximum printheads number		22
Max Row of printheads		3
Used ink		RA-1000 UV curing ink
Color selection		4 Colorsx4=CMYKx4
		6 Colorsx4=CMYKLcLmx4
		4 ColorsX2 +Whitex2=CMYK+WhiteX2+CMYK
		6 Colorsx2+Whitex2=CMYKLcLm+whiteX2+CMYKLcLm
		4 Colorsx2+White+Varnish
		6 ColorsX2+White+Varnish
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Three rows printhead printing speed
Draft Mode	4Pass-726×720	51.2㎡/h	76㎡/h	118.76㎡/h
Standard mode	4Pass-726×720	21.2㎡/h	40.56㎡/h	57.17㎡/h
Quality Mode	6Pass-726×1080	13.96㎡/h	27㎡/h	39㎡/h
High quality mode	8Pass-726×1440	10.66㎡/h	20.3㎡/h	29㎡/h
Print Media	Max Print size	Up to 3200×5000mm(10.5Fx16.4F)
	Thickness	Up to 100mm
	Max.weight	50Kg/㎡
RIP Software		ONYX、Flexi、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Printer weight		3500KG
Dimension (W x D x H)		5790mmx5426mmx1451mm
Power demand		AC220V±10%，≥32A，50/60HZ
Maximum power		7000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)

Remark

*The above printing speed is the measured printing speed.

*The power consuption basicis on standby and normal print.

*The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
