3300RA-Ultra

3.3 meters large format high quality high spped roll to roll UV printer

3300RA-Ultra

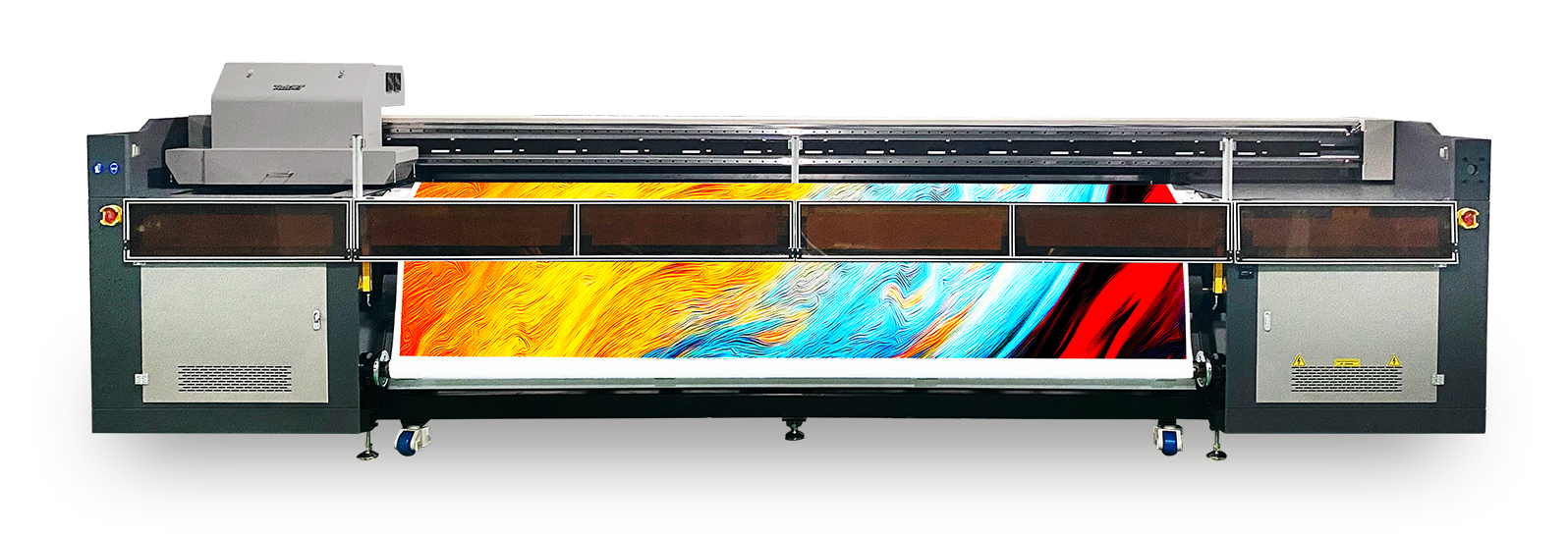

The 3300RA-Ultra high-quality UV roll-to-roll printer features an extra-wide printing width of 3.3 meters. It is equipped with high-speed magnetic linear drive control and Konica Minolta KM1024A printheads, enabling fast and high-precision printing output. This printer is widely applicable in various scenarios such as exhibition displays, commercial advertising, and more. Its exceptional operational stability and outstanding cost-performance ratio are key competitive advantages, making it the preferred choice for customers.

Outstanding image performance

The 3300RA-Ultra is equipped with Konica Minolta KM1024A industrial printheads, delivering a minimum dot size of just 6pl for precise and consistent jetting performance. The intelligent control software supports three-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

Excellent productivity

The 3300RA-Ultra can be configured with up to three rows totaling 22 printheads, dramatically expanding the printing width and significantly increasing productivity while maintaining high image quality ideal for high-volume, high-efficiency industrial printing applications.

High stability

The 3300RA-Ultra is designed with stability and reliability as its core focus. It features a dual negative pressure ink path control system to ensure stable ink supply. The machine is equipped with four 192mm diameter large rubber rollers for materials handling, Additionally, it is fitted with a water-circulating constant temperature printing platform. Whether performing long hours of continuous operation or large-format high-speed printing, the entire machine maintains excellent stability and consistently high print quality.

Wide range of applicationsHigh stability

The 3300RA-Ultra printer is suitable for a variety of materials, seamlessly combining creativity with production. Whether it's for advertising signs, exhibition displays, commercial advertisements, or other uses, it can efficiently present high-definition images and rich colors. With powerful industrial-grade performance and high-precision printing capabilities, it helps customers achieve efficient and high-quality production needs.

A wide field applications

Decoration painting

Stretch Ceiling

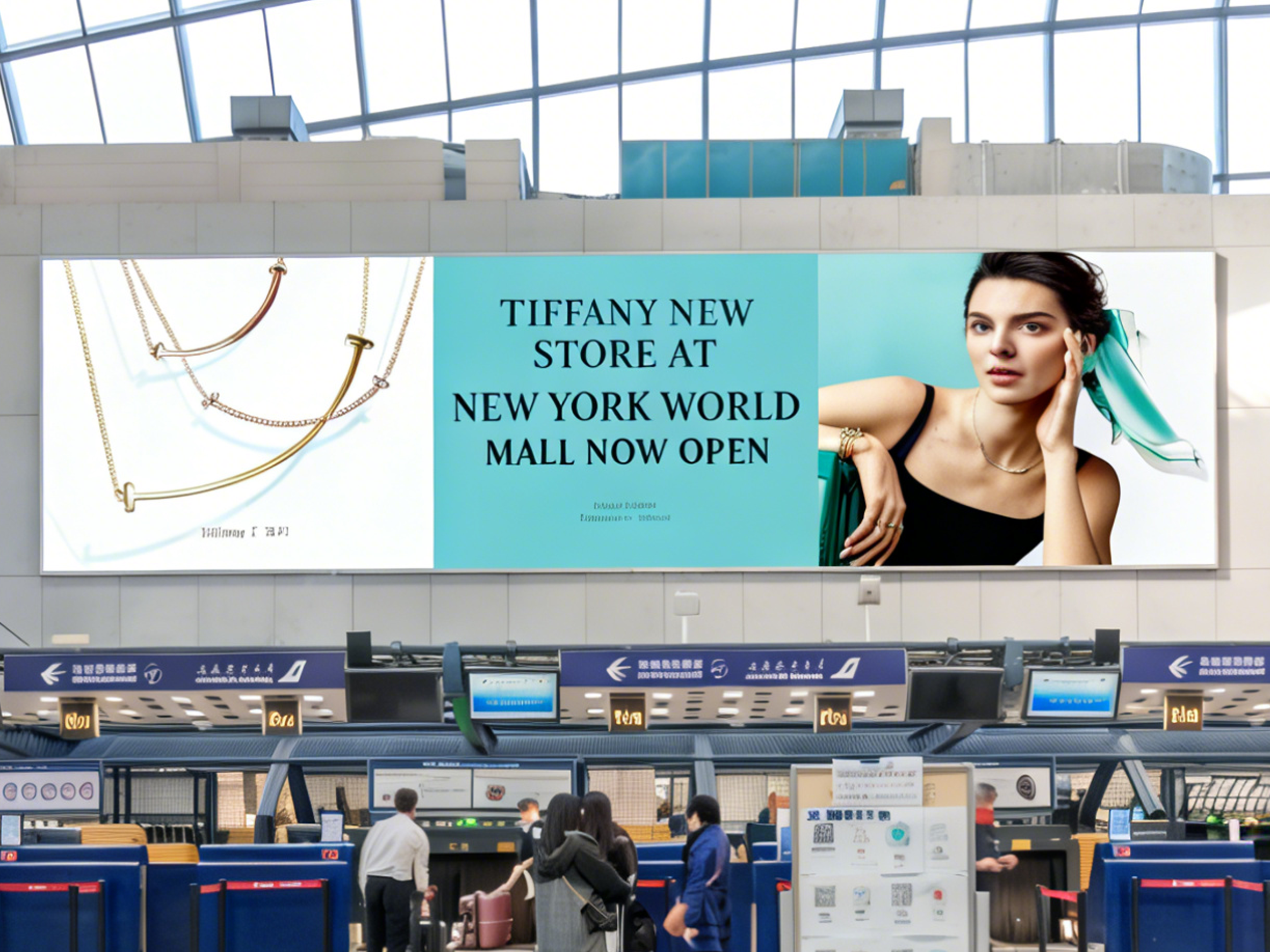

Airport Advertising

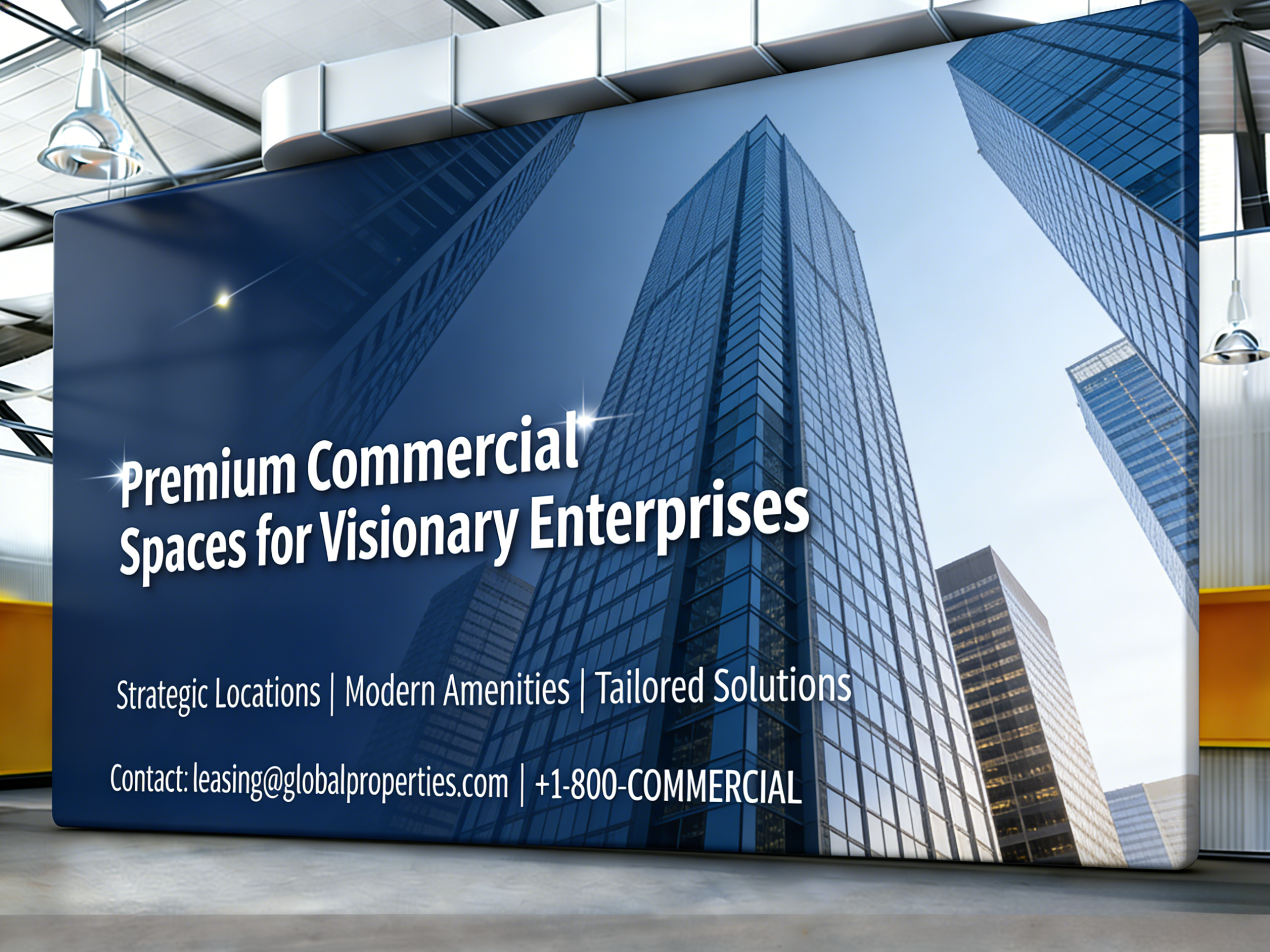

Outdoor large format advertising

Large billboard

Lightbox

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

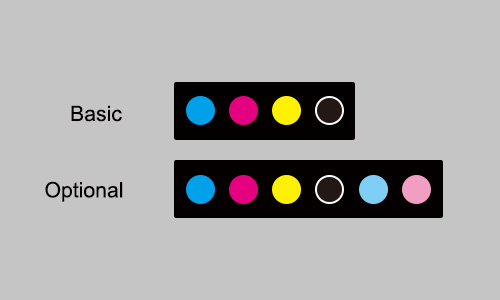

Basic Color Configuration: CMYK

Optional Color Configurations:CMYKLcLm More optional depend Custom Demand

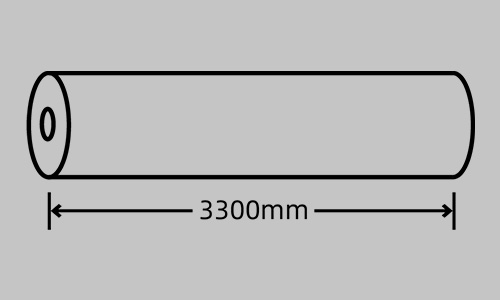

Maximum printing width: 3300mm(10'10")

It meets the requirements of most customers for large-format advertising printing.

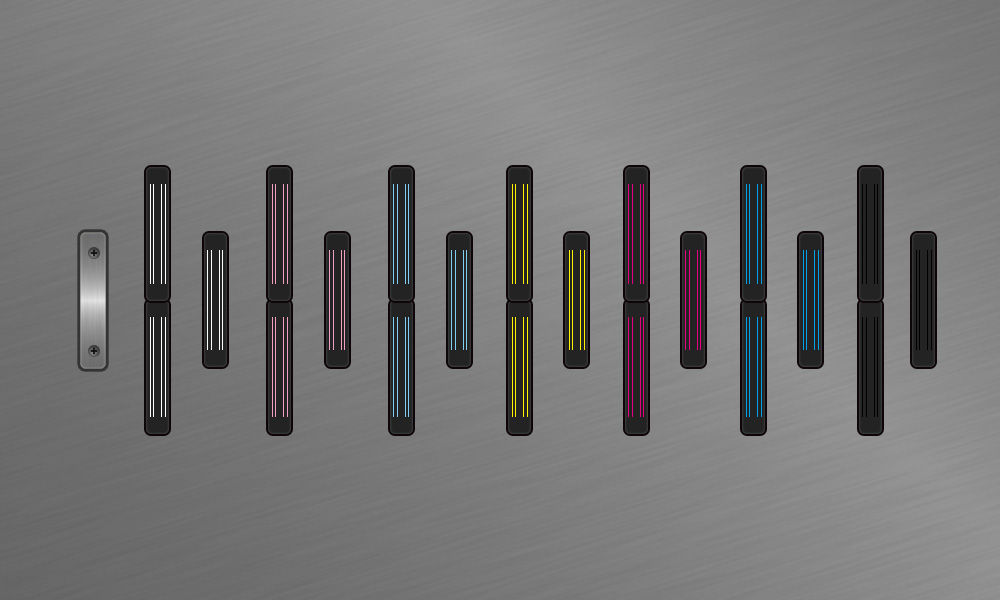

Equips 3 rows Konica Minolta 1024A printheads, ensure high-precision and amazing image quality output to meet your needs.

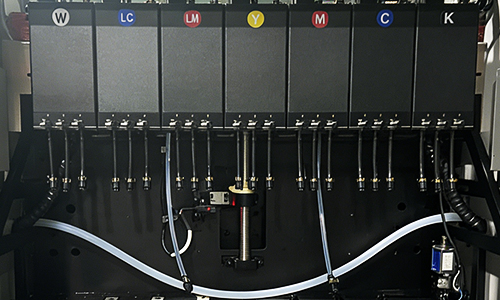

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

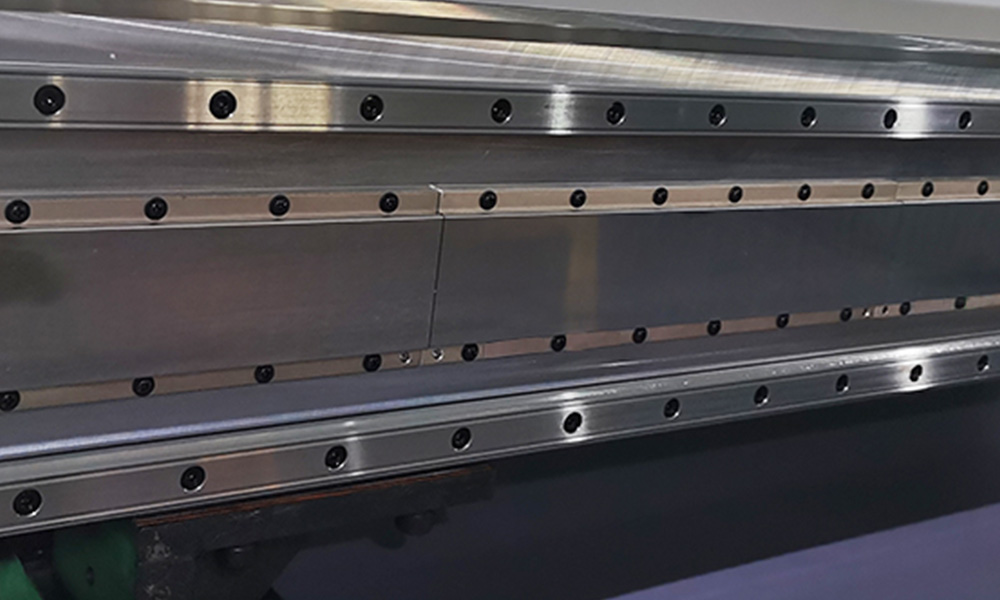

The metal grating paired with magnetic linear drive control empowers the carriage with both high speed and precise stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

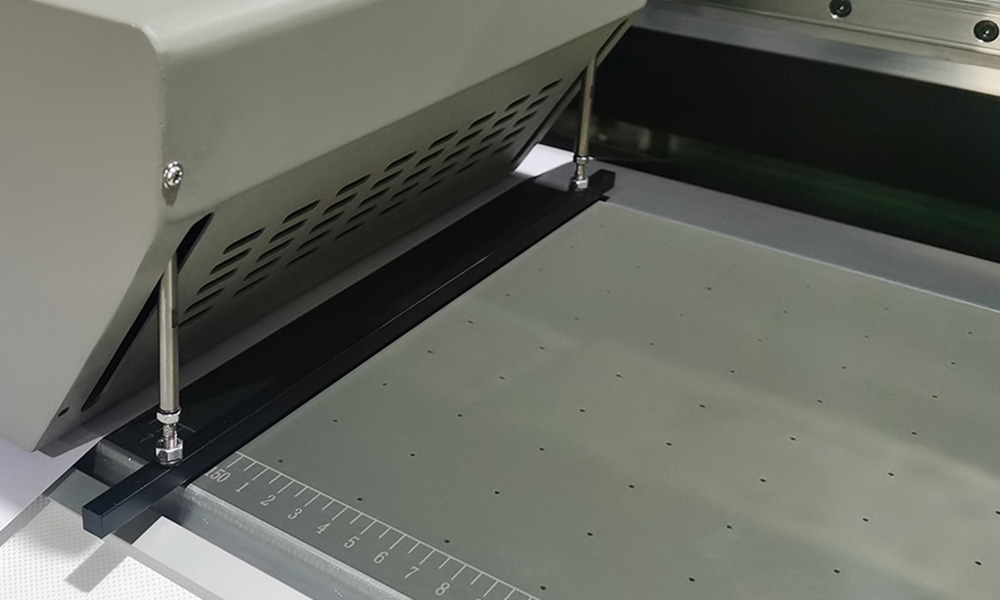

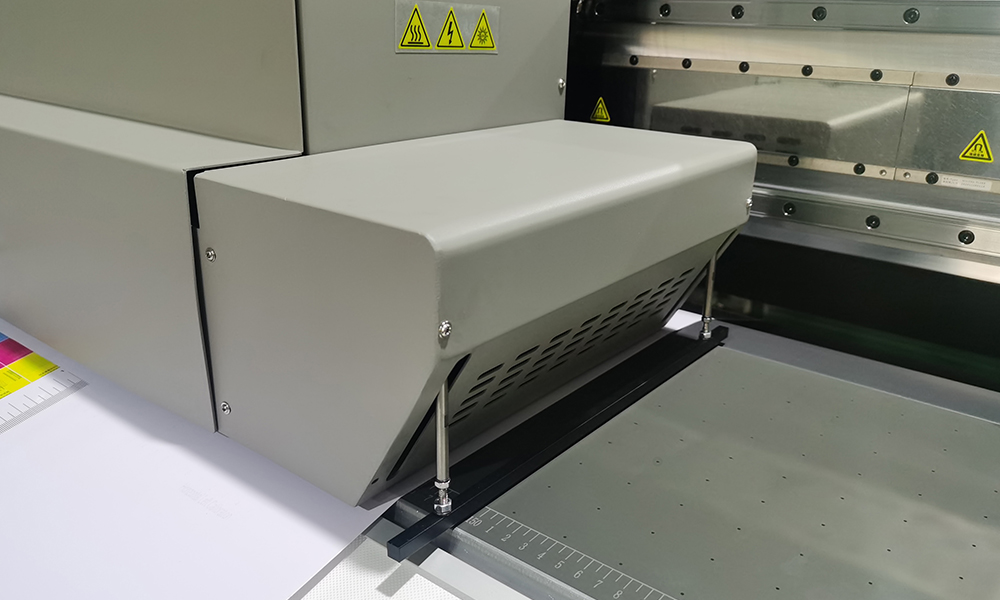

Efficiently dissipates heat generated during UV curing to maintain a stable printing temperature. Prevents media deformation and ensures image stability at high speeds.Ideal for heat-sensitive flexible materials such as soft signage, backlit films, and wallpapers, reducing waste and ensuring consistent output

Specifications

Model		TJ-3300RA-Ultra
Printhead		Konica Minolta 1024a industrial piezoelectric print head
Basic number of printhead		4
Maximum printhead number		22
Row of print heads		3-rows（7/8/7）
Maximum print size		3300mm
Supported ink		FV-1000 UV curing ink
Color selection		(CMYK),(CMYKLcLm), (CMYK+Wh ),(CMYKLcLm+Wh )
RIP Software		ONYX、FlexiPrint、Caldera（optional）
Print mode	Print resolution	Single-row head printing speed	Double-rows head printing speed	Triple-rows head printing speed
Speed	4Pass-726×720	55.7㎡/h	105.83㎡/h	161.53㎡/h
Standard	4Pass-726×720	30.5㎡/h	57.95㎡/h	88.45㎡/h
Quality	6Pass-726×1080	20.57㎡/h	39.08㎡/h	59.65㎡/h
Ultra	8Pass-726×1440	15.98㎡/h	30.36㎡/h	46.34㎡/h
Dimension(W x D x H)		5650mmx1300mmx1650mm
Printer weight		2700kg
Maximum printing thickness		2mm
Max media weight		120kg
interface		Standard USB Interface
Curing device		Dual LED-UV lamps
Ink supply method		Vacuum negative pressure, continuous ink supply
Power demand		AC220V±10%，≥30A，50/60HZ
Max/Min. power		6000W / 4000W
Printable environment		Temperature 15-30℃，Humidity 30%-70%RH(non condensing)
The above printing speed is the measured printing speed The specification are subject to change without notice

Download
2025-12-20 TJ-3300RA_Ultra.pdf

15 1.16 MB

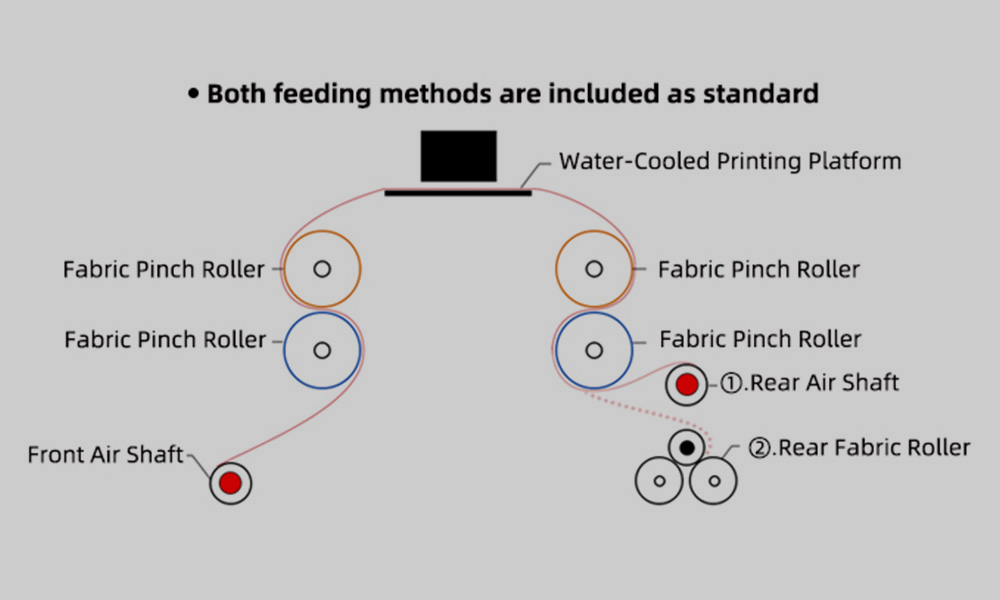

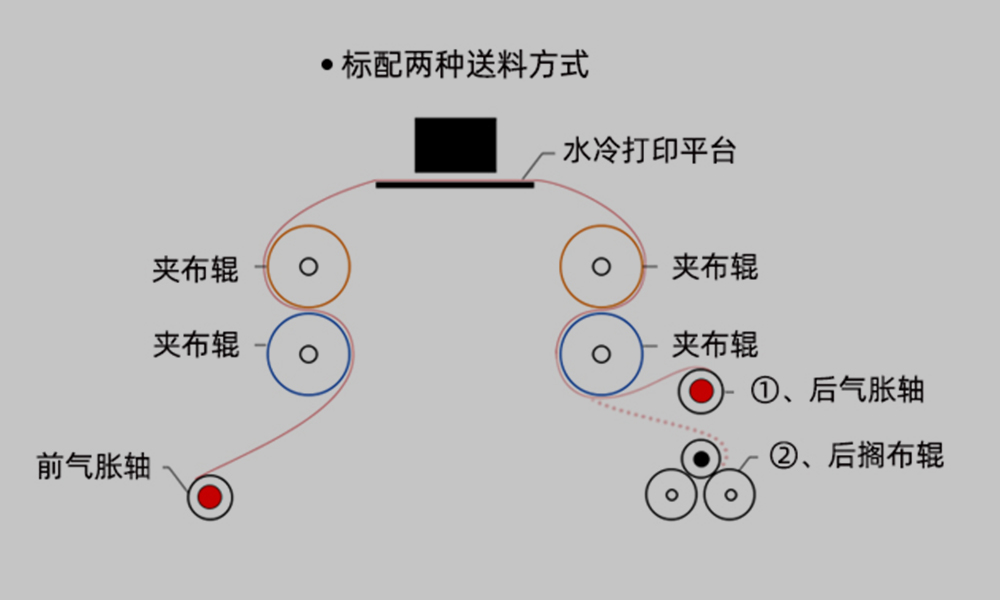

There are two feeding methods available to choose from:

①. Rear air-expansion shaft feeding method.

②. Rear fabric roller feeding method.

These options meet the user's feeding requirements for different printing materials.

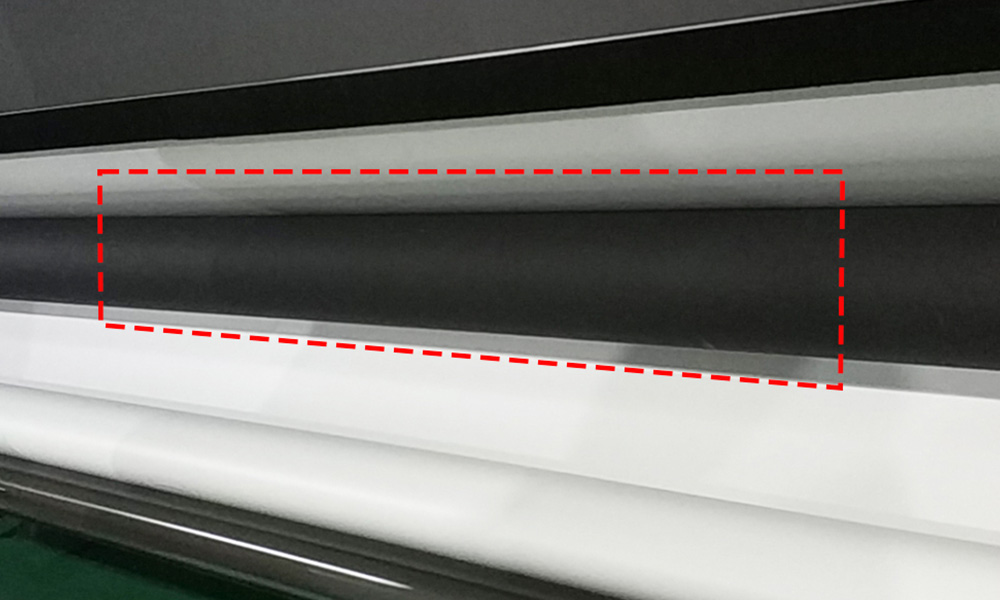

Equipped with four large-diameter rubber rollers (192 mm), delivering a gentler bending radius and uniform friction. Minimizes media slippage, wrinkling, and tracking issues, ideal for films, textiles, and synthetic materials.Ensures stable feeding and accurate registration for large-format, long-run, and stretchable media at high speeds.
