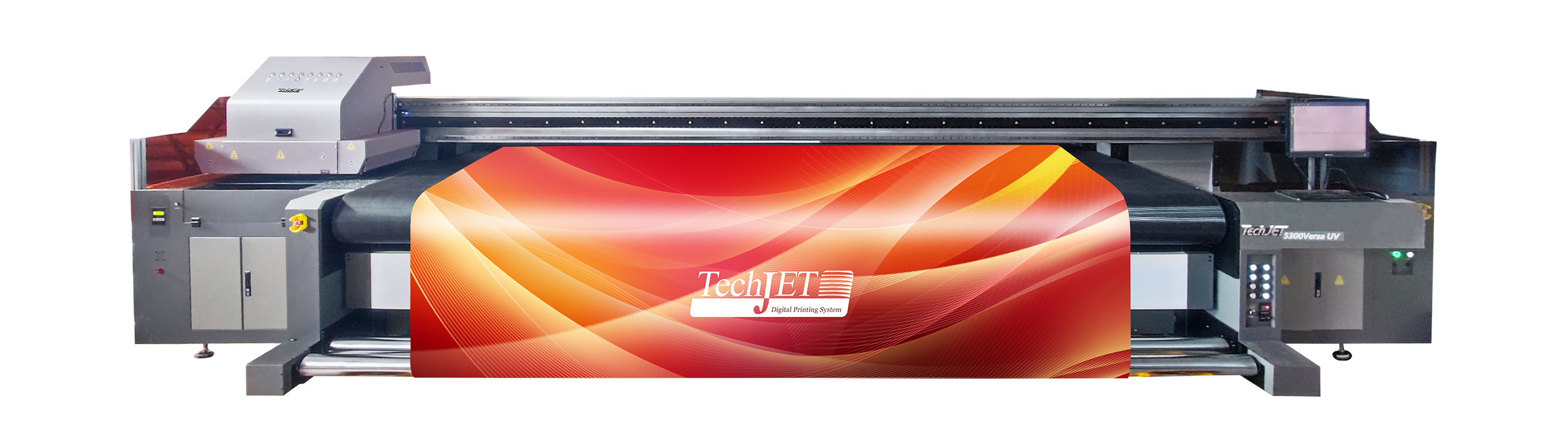

5300VersaUV

5.3 meters large format high quality high spped versatility UV printer

5300VersaUV

The 5300VersaUV features an 5.3-meter oversize printing width, enabling seamless full-width imaging for extra-large graphics without stitching, effectively eliminating seams and color inconsistencies. It is ideal for large-format advertising, lightboxes, and stage backdrops, significantly enhancing production efficiency and output quality.

Outstanding image performance

The 5300VersaUV is equipped with Konica Minolta KM1024A industrial printheads, delivering a minimum dot size of just 6pl for precise and consistent jetting performance. The intelligent control software supports three-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

Excellent productivity

The 5300VersaUV can be configured with up to six rows totaling 40 printheads, dramatically expanding the printing width and significantly increasing productivity while maintaining high image quality ideal for high-volume, high-efficiency industrial printing applications.

High stability

The 5300VersaUV designed for stability and reliability, the 5300VersaUV features a dual negative-pressure ink system for consistent ink supply and a multi-stage media feed system for smooth, even material handling. Whether running long continuous jobs or high-speed large-format printing, it delivers exceptional stability and uniform, high-quality output perfect for industrial-scale, high-volume production.

Wide range of applications

The 5300VersaUV printer is suitable for a variety of materials, seamlessly combining creativity with production. Whether it's for advertising signs, exhibition displays, commercial advertisements, or other uses, it can efficiently present high-definition images and rich colors. With powerful industrial-grade performance and high-precision printing capabilities, it helps customers achieve efficient and high-quality production needs.

A wide field applications

Stretch Ceiling

Outdoor large format advertising

Oversized concert poster

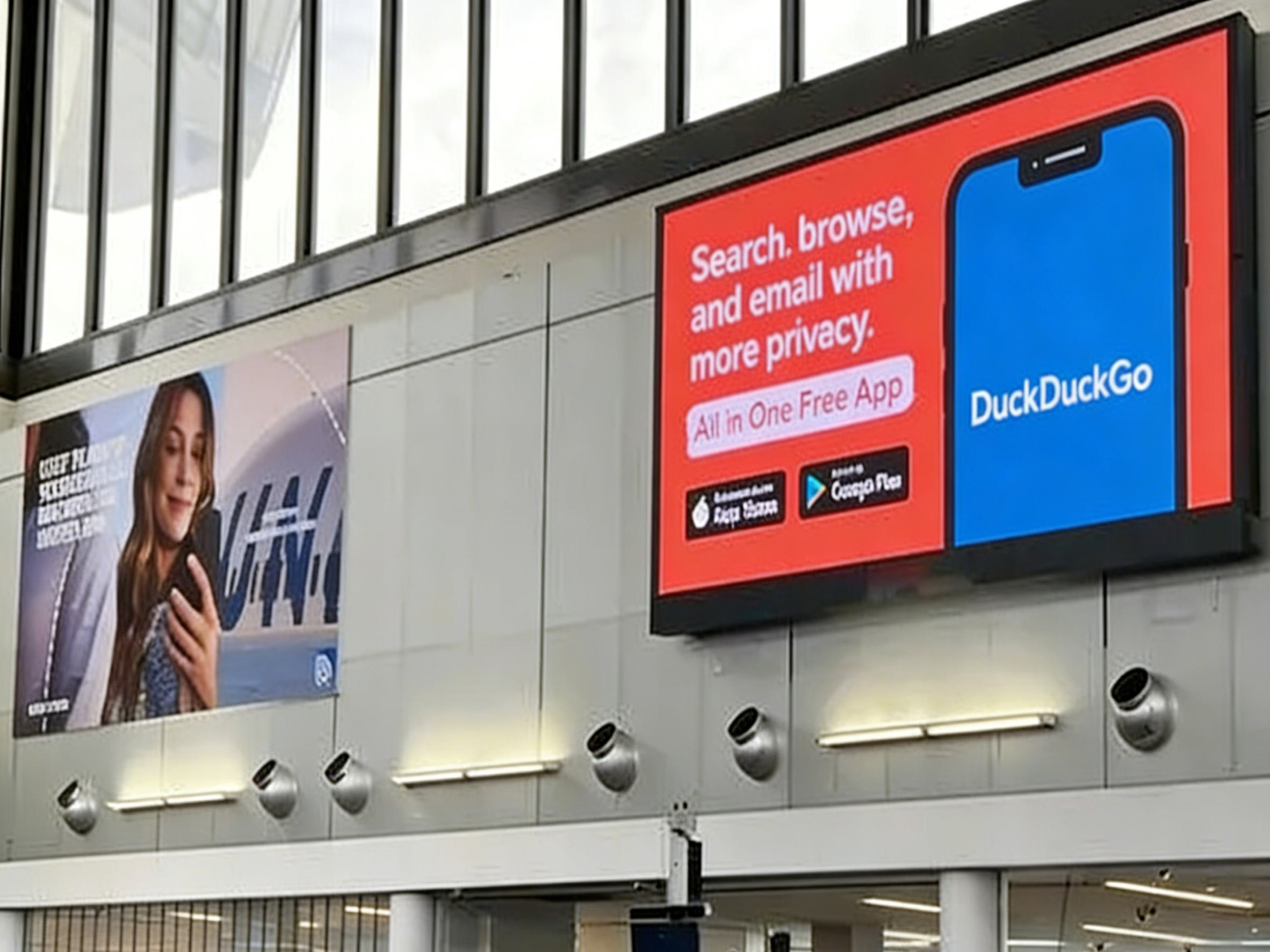

Airport Advertising

Lightbox

Large billboard

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

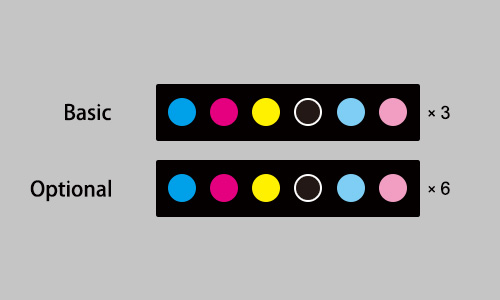

Basic Color Configuration: CMYKLcLm×3

Optional Color Configurations:CMYKLcLm×6

More optional depend Custom Demand

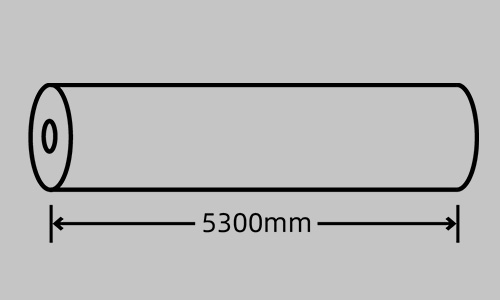

Maximum printing width: 5300mm(17'4.6")

Only one time large-format printing eliminates the need for splicing, saving material and labor costs.

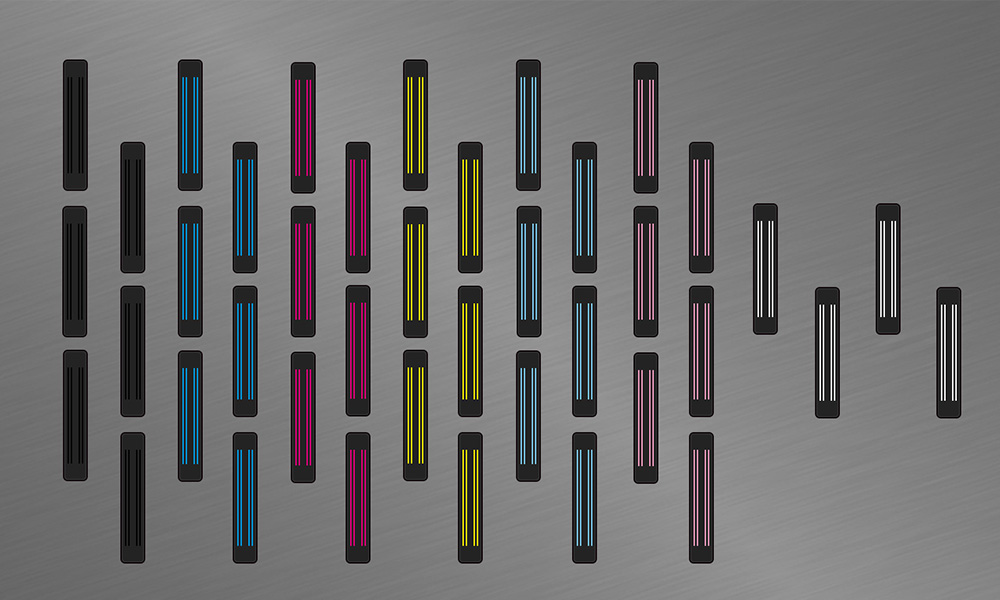

Equipped with six rows of Konica Minolta 1024A printheads, it significantly increases productivity while ensuring high precision.

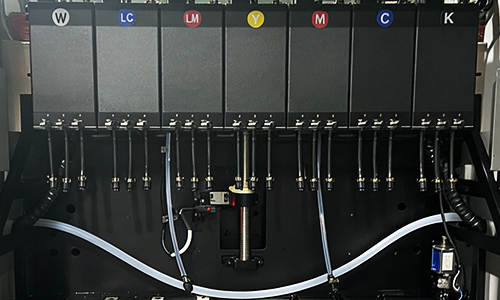

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

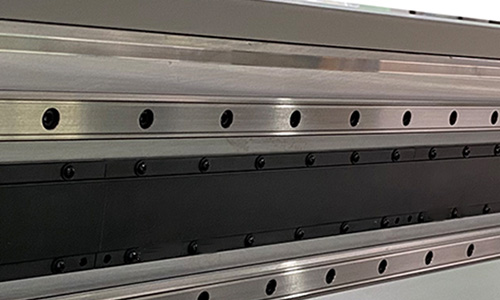

The metal grating paired with magnetic linear drive control empowers the carriage with both high speed and precise stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

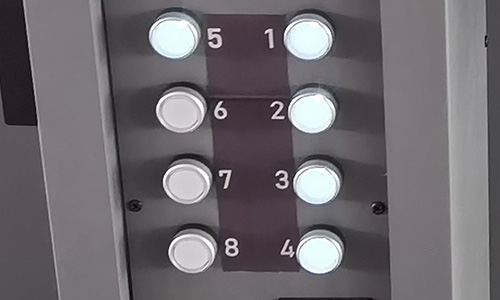

The eight-zone independently controlled negative pressure platform allows the suction areas to be adjusted according to the size of the printing media, ensuring the media remains flat and stable at all times.

Specifications

Model		5300VersaUV
Carriage moving method		Linear Motor
Printhead		Konica Minolta 1024a / 6988H
Basic and max number of printheads		12--40
Maximum printheads number		40
Max row of printheads		6
Used ink		F2-1000 / F4-1000 UV curing ink
Color selection		4 Colorsx4=CMYKx4
		6 Colorsx4=CMYKLcLmx4
		4 Colorsx2 +Whitex2 =CMYK+Whitex2+CMYK
		6 Colorsx2+Whitex2 =CMYKLcLm+whitex2+CMYKLcLm
		4 Colorsx2 +White+Varnish
		6 Colorsx2 +White+Varnish
Print mode	Print resolution	One row printhead printing speed	Two rows printhead printing speed	Three rows printhead printing speed	Four rows printhead printing speed
Draft Mode	4Pass-726×720	45㎡/h	90㎡/h	135㎡/h	180㎡/h
Standard mode	4Pass-726×720	20.57㎡/h	41.13㎡/h	61.7㎡/h	82.3㎡/h
Quality Mode	6Pass-726×1080	13.80㎡/h	27.60㎡/h	41.4㎡/h	55.2㎡/h
High quality mode	8Pass-726×1440	10.31㎡/h	20.63㎡/h	30.94㎡/h	41.24㎡/h
Print Media	Media	Roll media		Flat media
	Max Print size	Up to 5300mm		Up to Two 2450×1300mm
	Thickness	Up to 1.5mm		Up to 30mm
RIP Software		ONYX、FlexiPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Printer weight		5300KG
Dimension (W x D x H)		8500mm×2100mm×1900mm
Front and back printing platform（optional accessories）		5480mm×980mm×400mm
Power demand		AC220V±10%，≥32A，50/60HZ
Maximum power		8000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
