EP1800VersaUV

1.8 meters large format high quality UV printer

EP1800VersaUV

The EP1800VersaUV is equipped with imported electronic components and an intelligent protective design, ensuring efficient and stable continuous printing production. At the same time, it offers exceptional high-precision image output. The key highlights of this machine are its outstanding stability andand price-performance.

Outstanding image performance

The EP1800VersaUV is equipped with Epson i3200 printheads, supporting variable droplet printing technology, which enhances print quality with more intricate details and natural grayscale output, resulting in richer and more refined color transitions.

Low maintenance

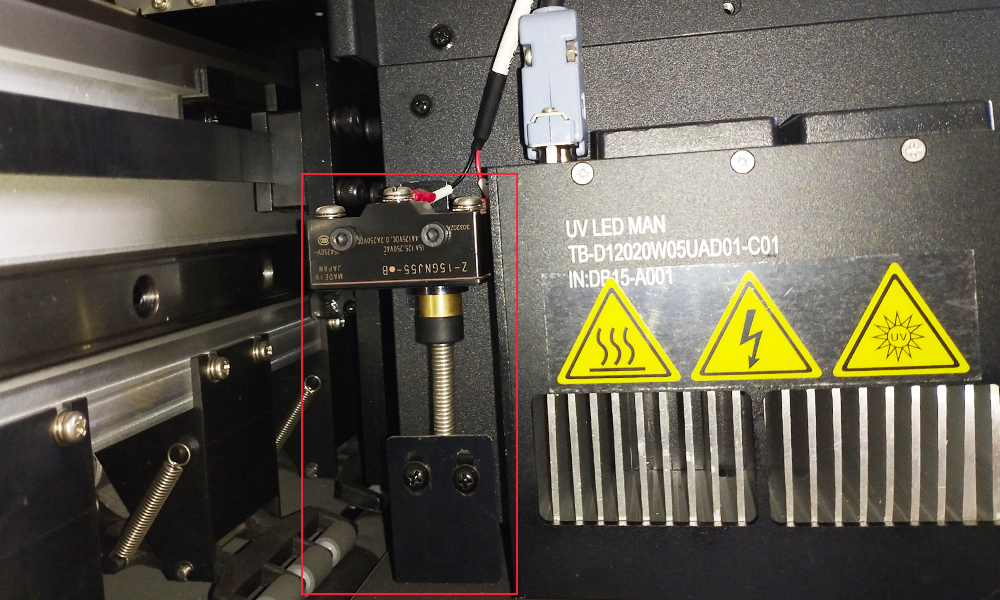

The EP1800VersaUV Equipped with a bidirectional printhead anti-collision system, a top-mounted 1.5L large-capacity ink cartridge that reduces ink replacement frequency, and imported electronic components that ensure long-term stable operation, it minimizes maintenance costs and downtime risks.

High stability

The EP1800VersaUV dual fan cooling LED-UV lamp enables immediate drying, with automatic circulation of white ink and ink stirring to prevent sedimentation and nozzle clogging. The THK silent guide rails and long-lasting guide belts ensure high-speed material movement, greatly enhancing batch production efficiency.

Wide range of applications

The EP1800VersaUV printer handles a diverse range of materials with ease. it delivers vivid, high-definition images every time. with industrial-grade performance and precise printing, the 1800VersaUV printer is ideal for outdoor advertising, commercial displays, packaging, home decoration, and custom projects, enabling efficient, flexible, and versatile production.

A wide field applications

Lightbox

Large billboard

Outdoor large format advertising

Airport Advertising

Decoration painting

Stretch Ceiling

Leather

Glass Decal

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

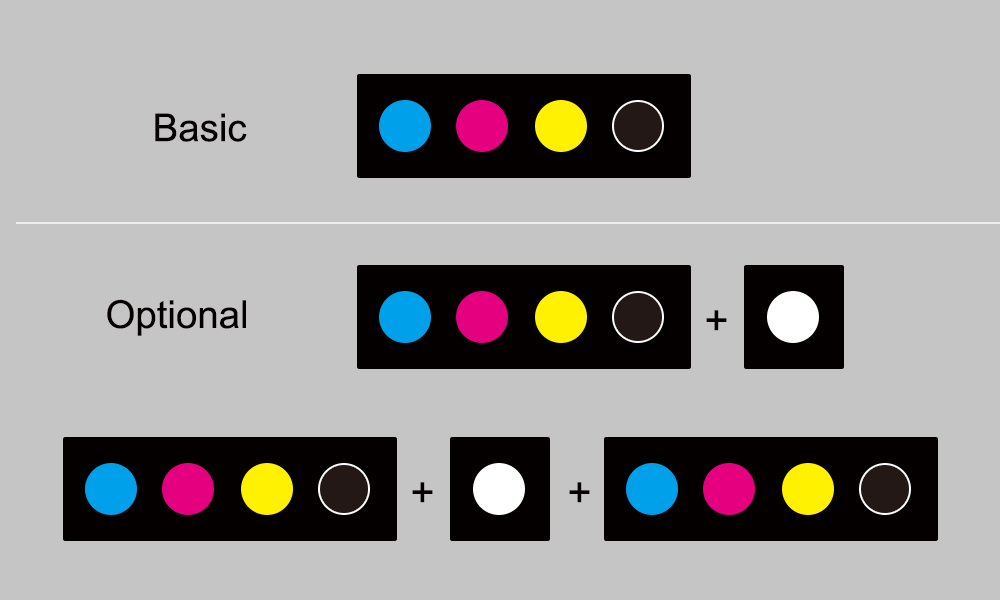

Basic Color Configuration: CMYK

Optional Color Configurations:CMYK+White，CMYK+White+CMYK

More optional depend Custom Demand

Maximum printing width: 1800mm(5'11") , It meets the requirements of most customers for large-format advertising printing.

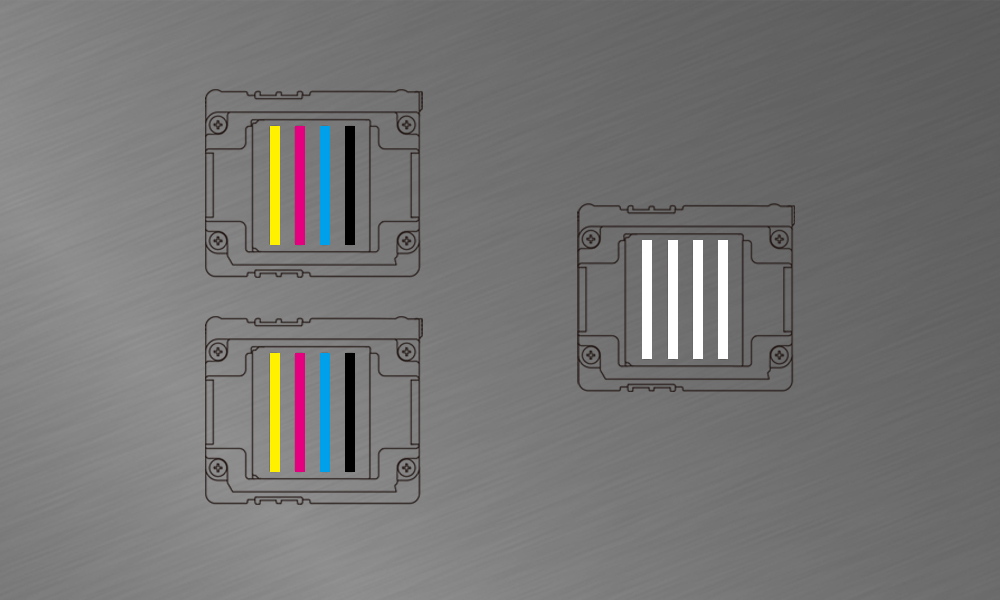

Equipped with Three Epson i3200 printheads, it significantly increases productivity while ensuring high precision.

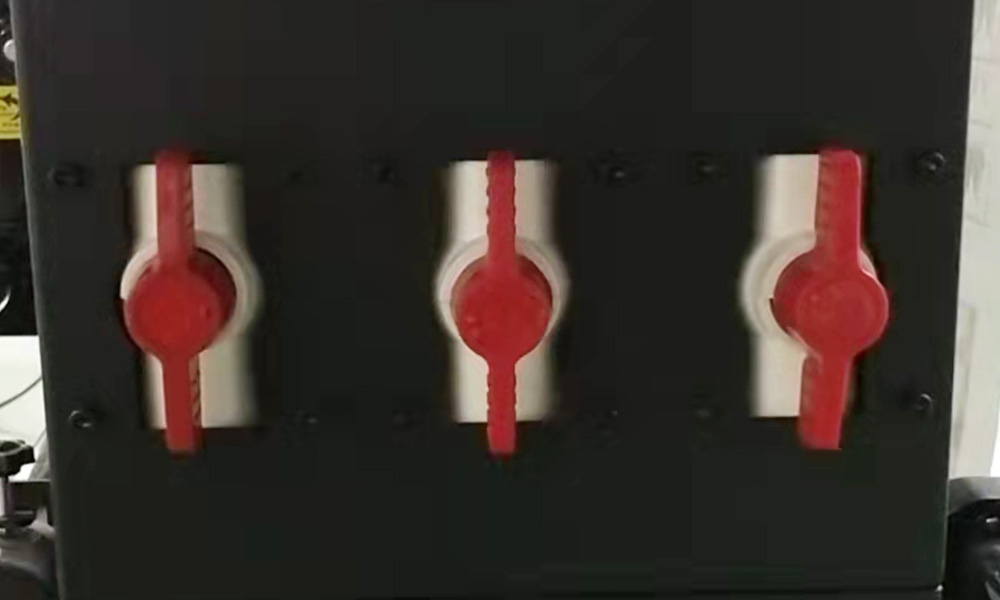

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

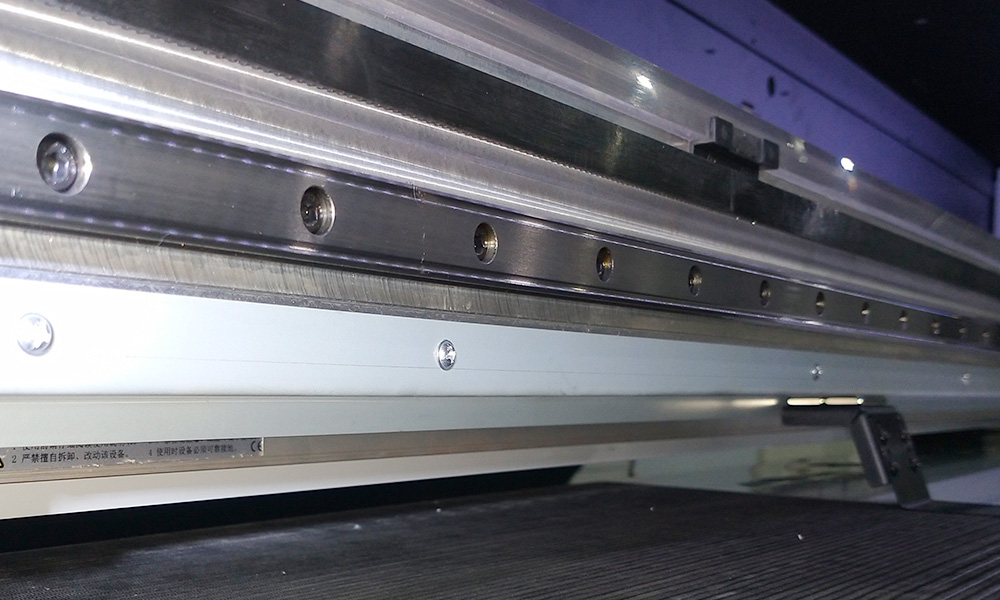

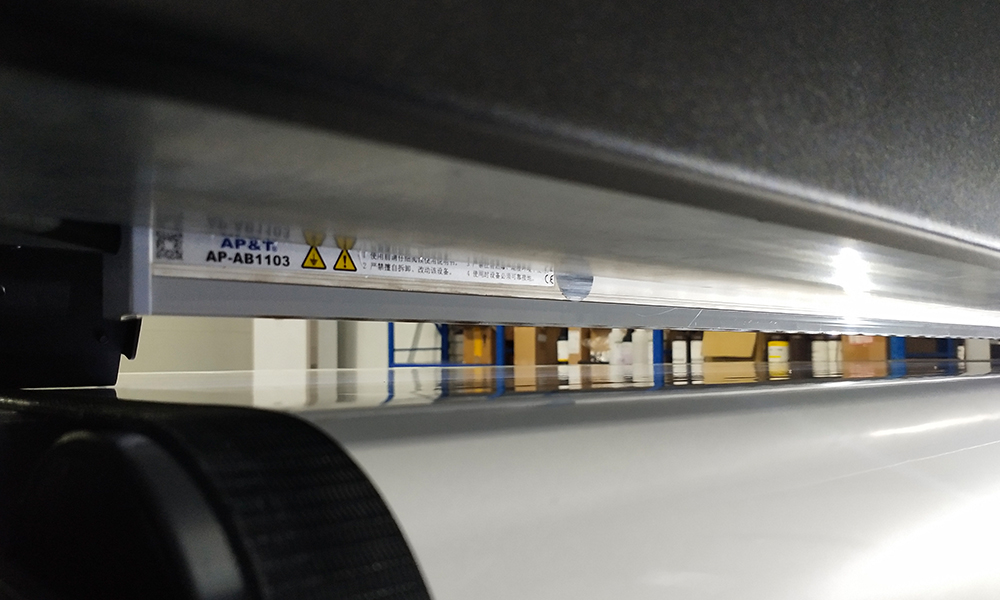

The metal encoder scale offers high precision, excellent temperature and wear resistance, and strong contamination resistance, effectively enhancing carriage positioning stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

The three-zone independently controlled negative pressure platform allows the suction areas to be adjusted according to the size of the printing media, ensuring the media remains flat and stable at all times.

Specifications

Model		TJ-EP1800VersaUV
Printhead		EPSON i3200-U1
Basic number of printhead		1
Maximum printhead number		3
Row of print heads		3-rows
Supported ink		TechJet
Color selection		（CMYK）、（CMYK+Wh）、（CMYK+Wh+CMYK）
Print resolution		720×1200dpi、720×1800dpi、360×1200dpi、360×2400dpi
Printing speed		Single-row head printing speed	Double-rows head printing speed	Triple-rows head printing speed	Color White Color
Quality of printing	Speed	15.21㎡/h	30.42㎡/h	45.63㎡/h	15.21㎡/h
	Standard	12.71㎡/h	25.42㎡/h	38.13㎡/h	12.71㎡/h
	Quality	9.89㎡/h	19.78㎡/h	29.67㎡/h	9.89㎡/h
	Ultra	7.03㎡/h	14.06㎡/h	21.09㎡/h	7.03㎡/h
Print media size	Media	Roll media
	Maximum print size	1680mm
	Maximum printing thickness	0.3-2.5mm
RIP software		Maintop、FlexiPrint
Interface		Network Interface
Ink supply method		Siphon continuous ink supply method
Curing device		Dual LED-UV lamps
Printer weight		700KG
Dimension(W x D x H)		3010mm×900mm×1550mm
Power demand		AC220V±10%，50/60HZ
Max/Min. power		≦3000W
Printable environment		Temperature 15-30℃，Humidity 30%-70%RH(non condensing)

The above printing speed is the measured printing speed
